The TILTA Nucleus Nano

The Nucleus Nano is a unique wireless lens control system designed specifically for handheld camera stabilizers. It allows the cameraman to control both the lens and the stabilizer at the same time. The Nucleus Nano system is widely compatible with all DSLR and DSLM cameras.

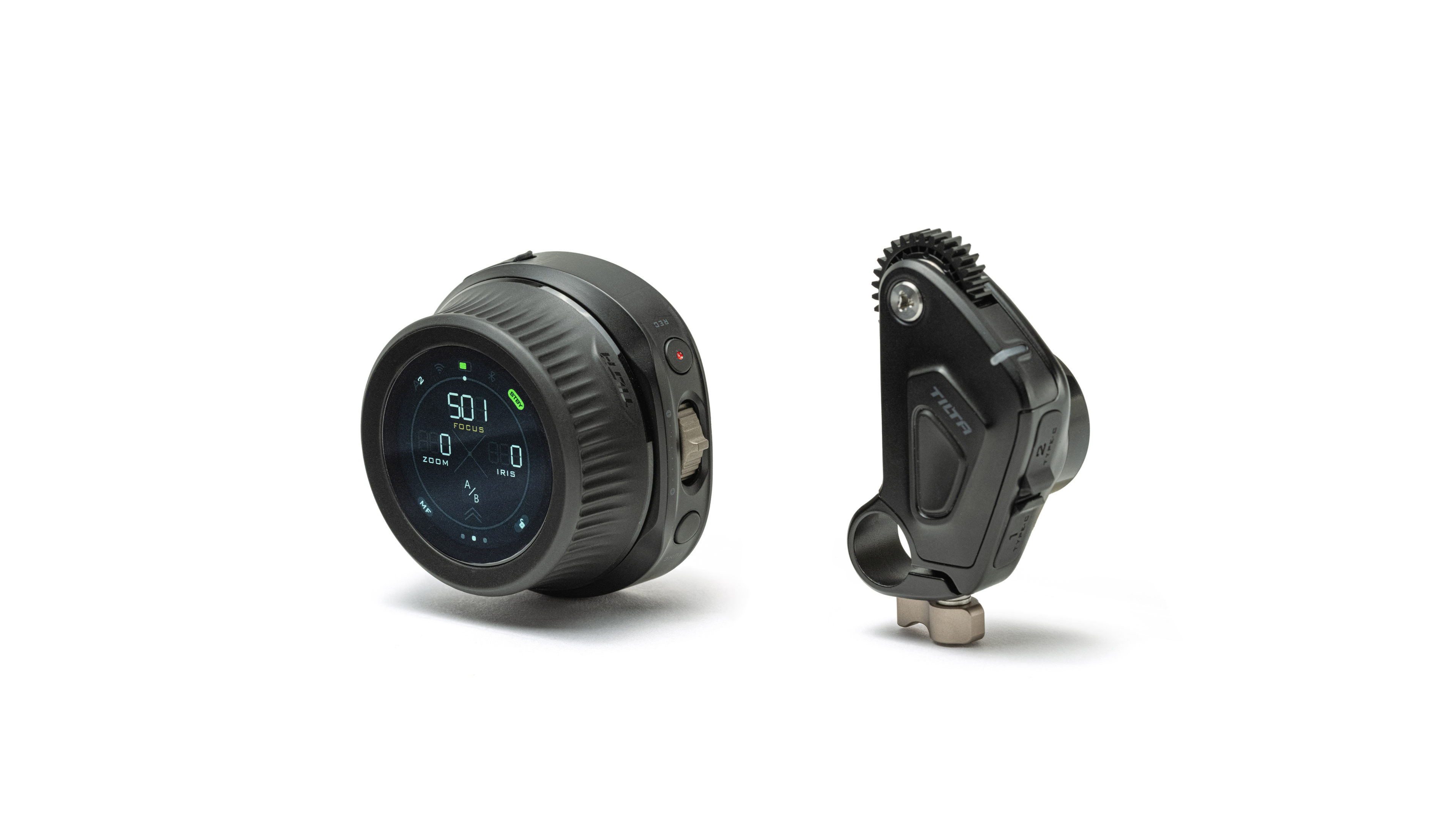

The Nano handwheel has a very compact design, similar to professional manual remote focus units (e.g. Tilta Nucleus-M). The system has no lag so it is very accurate and easy to use. The handheld unit is powered by a single 14500 battery (included) that lasts up to 6 hours.

Paired with the Tilta Gravity G2X compact handheld gimbal, one-handed control is possible thanks to the ability to attach the controller to the stabilizer rosette. Allows you to easily switch between G2X camera stabilizer modes and control focus - all at the same time!

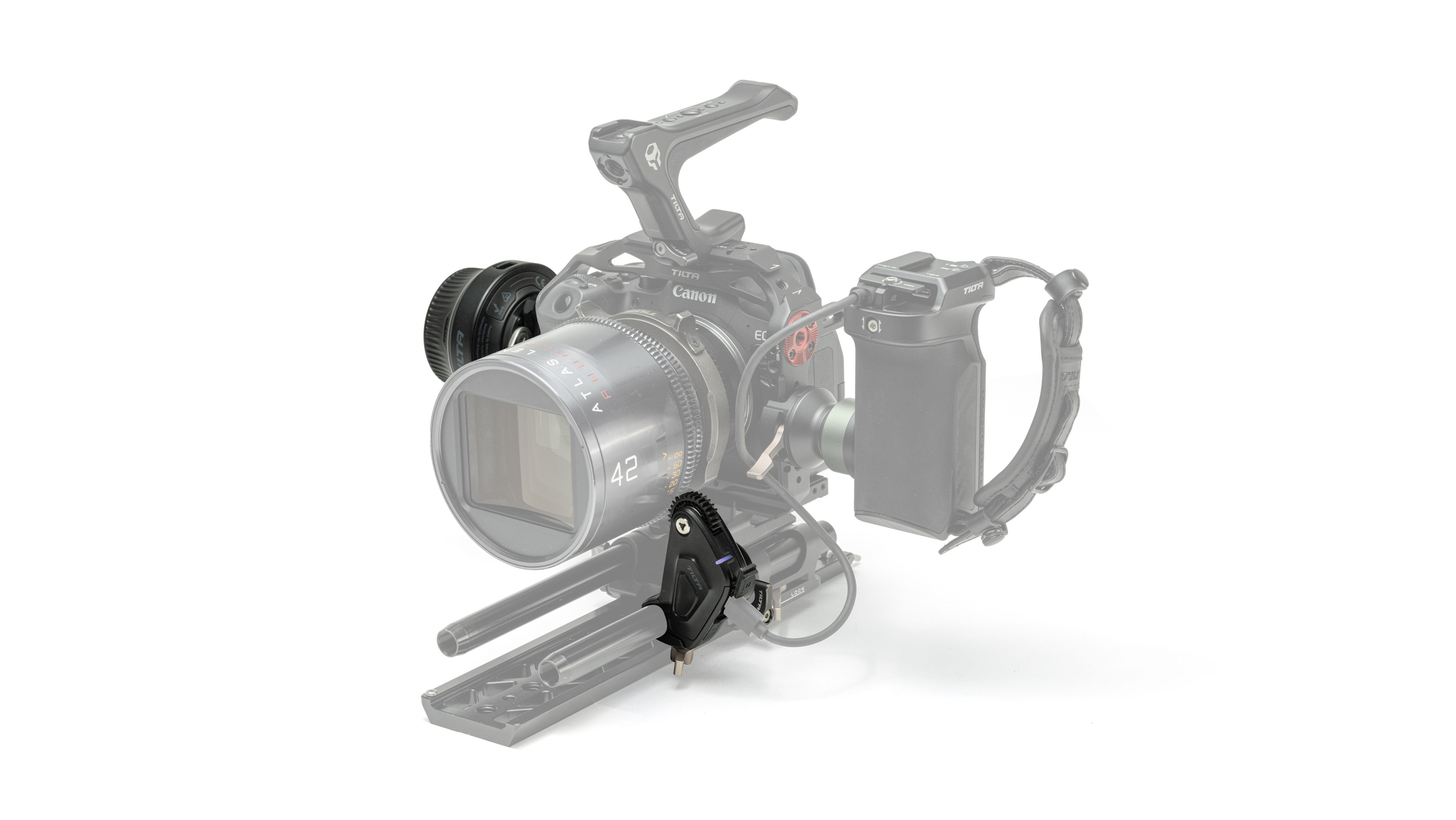

The Nucleus Nano system uses an advanced stepper motor with low power consumption, low noise and high torque. An integrated adapter for 15mm rails ensures compatibility with various camera systems and mounts. The motor is able to work with a voltage in the range of 5 - 18 V via the Micro USB interface. It can therefore be powered directly from the G2X (5 V Micro USB output) or via a P-tap - 5 V Micro USB adapter (optional accessory). The Nano motor is equipped with an integrated controller and communicates directly with the hand controller. Therefore, it is not necessary to use special MDR units, which saves space and time when setting up the kit: just assign the Nano motor and the Nano Wheel Controller to the same channel and you are ready to go! The range is approximately 90 m.

The motor supports automatic and manual lens calibration (for lenses without stops) with A-B limit settings and is equipped with a standard gear (0.8 module) for film lenses. The motor torque is 0.65 Nm at 5.5 V and 1 Nm at 14.8 V. The Nano motor is also compatible with the Nucleus-M lens

Available now from AVYX Distribution

ORDER NUCELUS NANO

Watch the Nucleus Nano on YT

Your AVYX team
