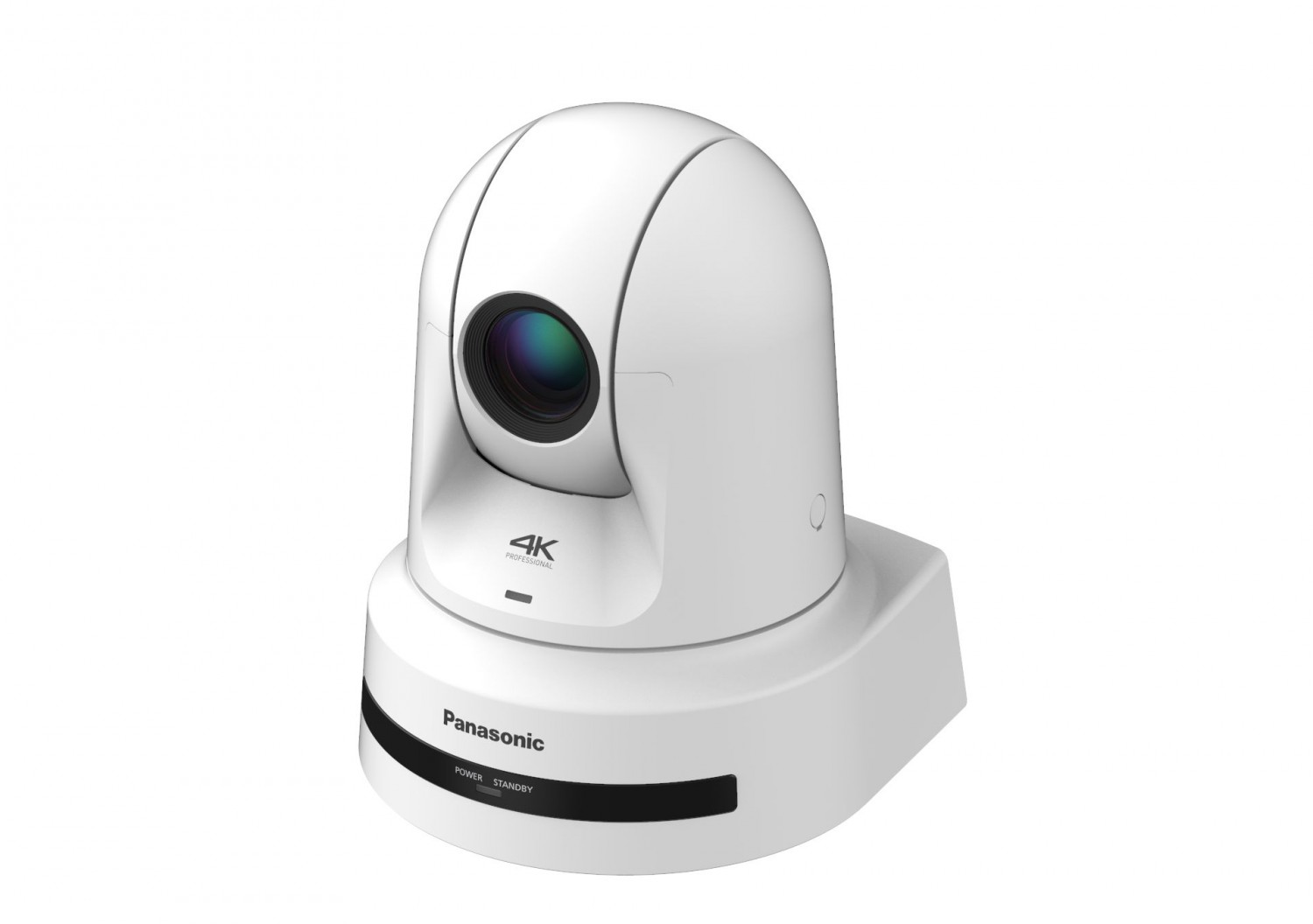

Panasonic AW-UE80W (Weiß)

Die marktführende PTZ-Kameraserie von Panasonic wird 2022 mit fünf neuen Modellen aufgefrischt, um den Marktanforderungen gerecht zu werden. Die integrierten 4K-Kameras AW-UE80W/K, AW-UE50W/K, AW-UE40W/K, AW-UE20W/K und die integrierte HD-Kamera AW-HE20W/K, die ab dem ersten Quartal 2022 nacheinander auf den Markt kommen, verfügen über ein neues, proprietäres…

Weitere Informationen

5 988 € inkl. MwSt. 4 990 € ohne MwSt.
-+
Verfügbarkeit
auf Anfrage

Alles Zubehör anzeigen

Produktbeschreibung ARTIKEL SPEZIFIKATIONEN VERPACKUNGSINHALT

Produktbeschreibung

Die marktführende PTZ-Kameraserie von Panasonic wird 2022 mit fünf neuen Modellen aufgefrischt, um den Marktanforderungen gerecht zu werden. Die integrierten 4K-Kameras AW-UE80W/K, AW-UE50W/K, AW-UE40W/K, AW-UE20W/K und die integrierte HD-Kamera AW-HE20W/K, die ab dem ersten Quartal 2022 nacheinander auf den Markt kommen, verfügen über ein neues, proprietäres Direktantriebssystem, das auf Panasonics eigener Technologie für leise und reibungslose vertikale und horizontale Bewegungen basiert.



Da sich Unternehmen an eine immer schneller werdende digitale Umgebung anpassen müssen, ist die Qualität der Videoübertragung in den Bereichen Bildung, Unternehmen, Live-Events und Rundfunk besonders wichtig geworden. Mit klaren Bildern und einer dynamischen Bildproduktion, wie sie nur mit den Schwenk-, Neige- und Zoomfunktionen von Panasonic möglich ist, lässt sich die Qualität der Online-Kommunikation verbessern und das Gefühl der Präsenz verstärken, auch wenn man sich nicht persönlich gegenübersteht.

Die Modelle AW-UE40, AW-UE50 und AW-UE80 verfügen über einen 24-fachen optischen Zoom und einen bis zu 36-fachen intelligenten Zoom sowie einen Betrachtungswinkel von 74,1 Grad für den Einsatz in Innen- und Außenbereichen. Die neueste Generation der optischen Bildstabilisierung (OIS) sorgt für hervorragende Stabilität. Alle Kameras unterstützen PoE, was eine Einkabellösung ermöglicht, bei der Video und Audio, Steuerung und Stromversorgung über eine einzige Ethernet-Verbindung zur und von der Kamera bereitgestellt werden können.

Die neuesten IP-basierten Videoprotokolle werden unterstützt, einschließlich NDI|HX Version 2 und, im Falle der AW-UE80, NDI mit voller Bandbreite. Neben RTMP und RTMPS wird auch das SRT-Protokoll unterstützt. Die AW-UE80 wird auch das FreeD-Protokoll unterstützen, um die Integration mit AR- und VR-Systemen sowie 4K/50p-Videofunktionen zu gewährleisten. Die 4K-fähige AW-UE20W/K und die integrierte HD-Kamera AW-HE20W/K sind PTZ-Kameras der Einstiegsklasse, die speziell für den Unternehmens- und Hochschulmarkt entwickelt wurden. Beide Modelle verfügen über ein Weitwinkelobjektiv, die neuesten IP-Protokoll-Zertifizierungen und Anschlussmöglichkeiten für SDI, HDMI, USB und IP.

Panasonic bietet ein ganzes Ökosystem von Lösungen an, mit denen sich die neuen PTZ-Kameras reibungslos in bestehende Kamerasysteme integrieren lassen. Dazu gehört die Verwendung mit den Remote-Kamerasteuerungen, der zentralen Steuerungssoftware PTZ Control Center und der automatischen Tracking-Software für Präsentationen und Vorträge, die durch Gesichts- und Körpererkennung ermöglicht wird.



VERPACKUNGSINHALT

1 PTZ Camera

SPEZIFIKATIONEN

Power Requirements 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode")
Output Format -
Color separation optical system 1MOS
Focus Switching between auto and manual
Focus Distance Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Gamma HD / Normal / Cinema1 / Cinema2 / Still Like
Scene File -
Synchronization System Internal/External synchronization (BBS/Tri-level sync)
Pan/Tilt Operation Speed Speed range: 0.08°/s to 60°/s (Normal mode)*8
• 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness NC25 or less
Electronic Shutter Speed -
Tilting Range -30°to 90°*9
Imaging Sensors 1/2.5-type MOS×1
Frame Mix Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability OFF, -99 % to 99 %
Ambient Operating Humidity 20 % to 90 % (no condensation)
Finish AW-UE80W: WhiteAW-UE80K: Black
Image Resolution 1920×1080, 1280×720, 640×360, 320×180
Panning range ±175°
Camera Unit -
Mass Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
INPUT -
OUTPUT -
INPUT/OUTPUT -
Installation Method Stand-alone (Desktop) or suspended (Hanging)*7
Camera/pan-tilt head control -
Controller Supported AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm) 170.0 mm x 211.0 mm x 171.0 mm
Dimensions (W x H x D) (inch) 6.693 inches x 8.307 inches x 6.732inches
PoE++ IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Conversion Lens Not supported
Angle of View Range Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Syncro Scan -
Supported operating systems and web browsers -
IP Streaming -
Image Streaming Mode JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI®
Image Transmission setting (JPEG) Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264) Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission  Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265) Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission  Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type AAC-LC, 48 kHz, 16 bit, 2 ch
Pan Tilt Head Unit -
Supported protocol -
Note *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:Use Category 6 or higher when transmitting 4K video.*7:To ensure safety, the unit must be secured using the mount bracket supplied.*8:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*9:The main unit may appear in the video depending on the pan/tilt position.*10:Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.*11:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*12:NDI® is a registered trademark of NewTek, Inc. in the United States.*13:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.*14:Simultaneous operation with the AW protocol is not possible.*15:Non-synchronous with SDI-OUT
Other Function -
Tally LED display color red / green
NDI Support NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14
Mic/line input AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP)
IP connecting cable • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Image Stabilization OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT)
Electronic Shutter Speed | 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Input/Output Connector | LAN LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422 CONTROL IN RS422A(RJ-45)
Windows Windows 10
Windows® Internet Explorer® 11(32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Video Output | HDMI HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported
Supported protocol | IPv4 TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6 TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT
Output Formats High Bandwidth NDI®  : 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p
New Functions -
Electronic Shutter Speed | 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i 60.0 Hz to 7200 Hz
Synchro Scan | 29.97p 30.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p 24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i 50.0 Hz to 7200 Hz
Synchro Scan | 25p 25.0 Hz to 7200 Hz
Output Format | SDI | HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Output Format | HDMI | 4K 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Video Output | 3G-SDI OUT SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported
Image Resolution | NDI®|HX version 2 1920x1080, 1280x720
Audio Compression Type | High Bandwidth NDI® AAC-LC, 48 kHz, 2 ch
Audio Compression Type | NDI®|HX version 2 AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video Supported*15
Power LED ON/OFF control
Tripod Screw Penetration Measures Possible
Pan/Tilt Mechanical Method New Direct Drive System



LENS Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
General -
MINIMUM ILLUMINATION 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Zoom • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x• Digital extender zoom: 1.4x, 2x
Horizontal Resolution 1,500 TV Typ (Center area, UHD mode, wide)1,000 TV Typ (Center area, FHD mode, wide)
Input Connectors DC 12 V IN, G/L IN(BNC)BBS (Black Burst Sync), tri-level sync supported)
Input/Output Connector -
Gain Selection Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
WHITE BALANCE • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB: AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value)
Storage Temperature -20 to 50°C (-4 °F to 122 °F)
VIDEO OUTPUT -
Current consumption 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
Privacy Mode
The lens surface faces backward when standing by (ON/OFF)* Default is OFF
VR Compatibility Supports FreeD protocol
Android Android OS
Google Chrome
iPhone / iPad iOS
Safari
iPadOS
Image Transmission Setting (High Bandwidth NDI®) Transimission Type: TCP/UDP, Unicast/Multicast
Max Bit Rate: 250 Mbps
Image Transmission Setting (NDI®|HX version 2) Transimission Type: TCP/UDP, Unicast/Multicast

ARTIKEL

Parameter

Parameter

Hersteller: Panasonic
Kategorie: PTZ

Wichtigste Parameter

Sensorgröße1/2.5"
Auflösung4K UHD
Vergrößern24x
Art des Bajonettsintegriertes Objektiv
Abgerufen vonHDMI
Abgerufen vonNDI
Abgerufen von3G SDI
Abgerufen vonIP

Andere Parameter

VersionPTZ
FPS4K 60fps
Min. Brennweite4.1mm
Max. Brennweite98.9mm
Andere MerkmalePTZ
Andere MerkmaleStreaming
Andere MerkmalePoE
Andere MerkmaleNDI / NDI HX
Andere MerkmaleFreeD
Andere MerkmaleSRT
KontrollprotokollNDI
KontrollprotokollRS-422
